Doubly Linked List

A doubly linked list is a type of linked list in which each node consists of 3 components:

*prev - address of the previous node
data - data item
*next - address of next node

Note: Before you proceed further, make sure to learn about pointers and structs.

Representation of Doubly Linked List

Let's see how we can represent a doubly linked list on an algorithm/code. Suppose we have a doubly linked list:

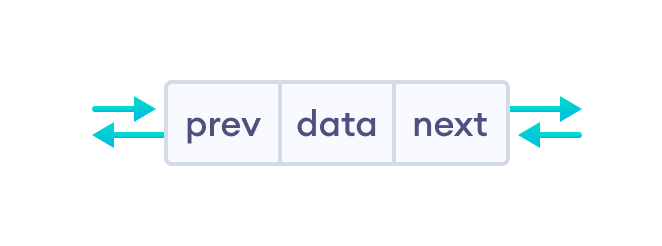

Here, the single node is represented as

struct node {
    int data;
    struct node *next;
    struct node *prev;
}

Each struct node has a data item, a pointer to the previous struct node, and a pointer to the next struct node.

Now we will create a simple doubly linked list with three items to understand how this works.

/* Initialize nodes */
struct node *head;
struct node *one = NULL;
struct node *two = NULL;
struct node *three = NULL;

/* Allocate memory */
one = malloc(sizeof(struct node));
two = malloc(sizeof(struct node));
three = malloc(sizeof(struct node));

/* Assign data values */
one->data = 1;
two->data = 2;
three->data = 3;

/* Connect nodes */
one->next = two;
one->prev = NULL;

two->next = three;
two->prev = one;

three->next = NULL;
three->prev = two;

/* Save address of first node in head */
head = one;

In the above code, one, two, and three are the nodes with data items 1, 2, and 3 respectively.

For node one: next stores the address of two and prev stores null (there is no node before it)
For node two: next stores the address of three and prev stores the address of one
For node three: next stores null (there is no node after it) and prev stores the address of two.

Note: In the case of the head node, prev points to null, and in the case of the tail pointer, next points to null. Here, one is a head node and three is a tail node.

Insertion on a Doubly Linked List

Pushing a node to a doubly-linked list is similar to pushing a node to a linked list, but extra work is required to handle the pointer to the previous node.

We can insert elements at 3 different positions of a doubly-linked list:

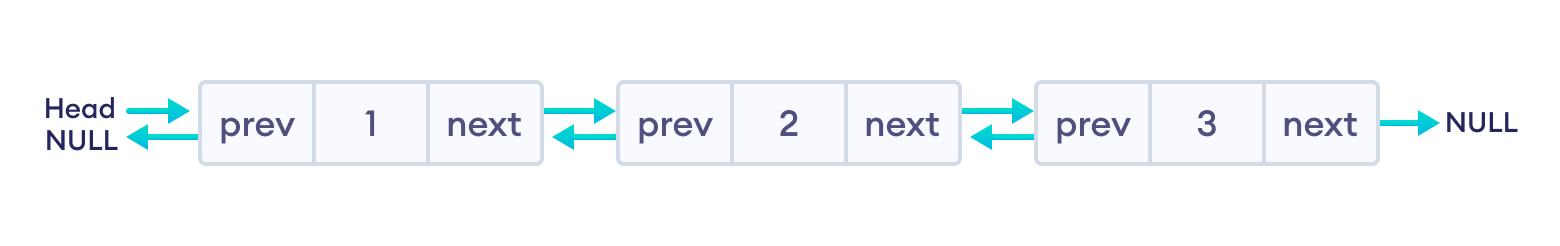

Suppose we have a double-linked list with elements 1, 2, and 3.

1. Insertion at the Beginning

Let's add a node with value 6 at the beginning of the doubly linked list we made above.

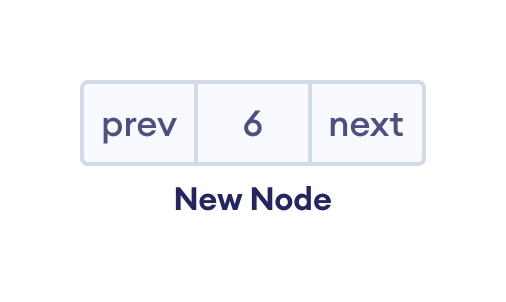

1. Create a new node

allocate memory for newNode
assign the data to newNode.

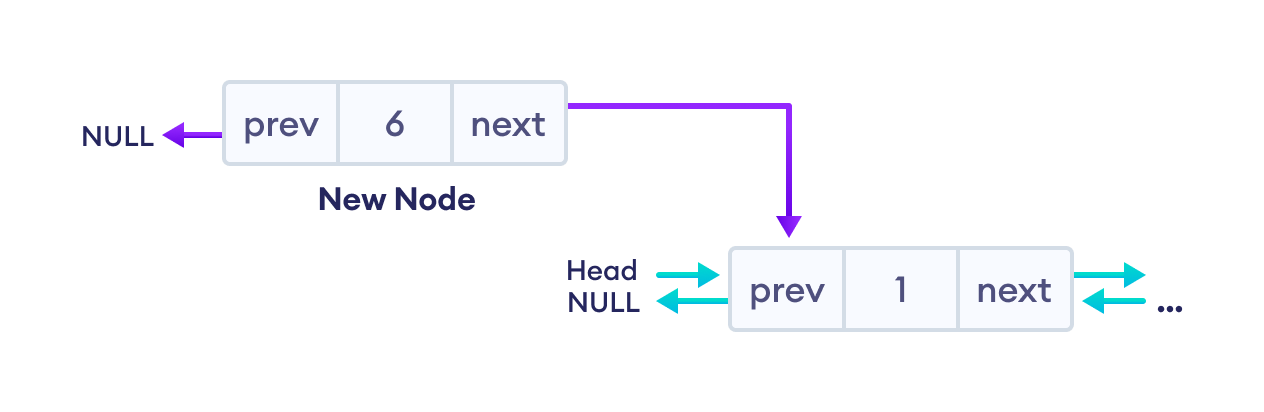

2. Set prev and next pointers of new node

point next of newNode to the first node of the doubly linked list
point prev to null

Reorganize the pointers (changes are denoted by purple arrows)

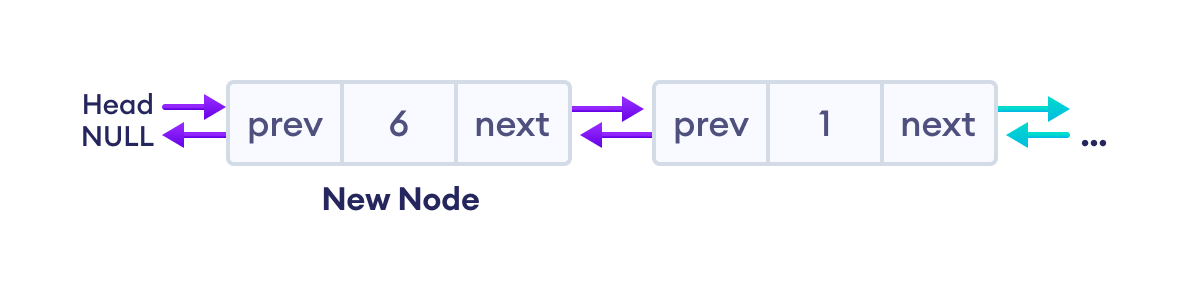

3. Make new node as head node

Point prev of the first node to newNode (now the previous head is the second node)
Point head to newNode

Code for Insertion at the Beginning

// insert node at the front
void insertFront(struct Node** head, int data) {

    // allocate memory for newNode
    struct Node* newNode = new Node;

    // assign data to newNode
    newNode->data = data;

    // point next of newNode to the first node of the doubly linked list
    newNode->next = (*head);

    // point prev to NULL
    newNode->prev = NULL;

    // point previous of the first node (now first node is the second node) to newNode
    if ((*head) != NULL)
        (*head)->prev = newNode;

    // head points to newNode
    (*head) = newNode;
}

2. Insertion in between two nodes

Let's add a node with value 6 after node with value 1 in the doubly linked list.

1. Create a new node

allocate memory for newNode
assign the data to newNode.

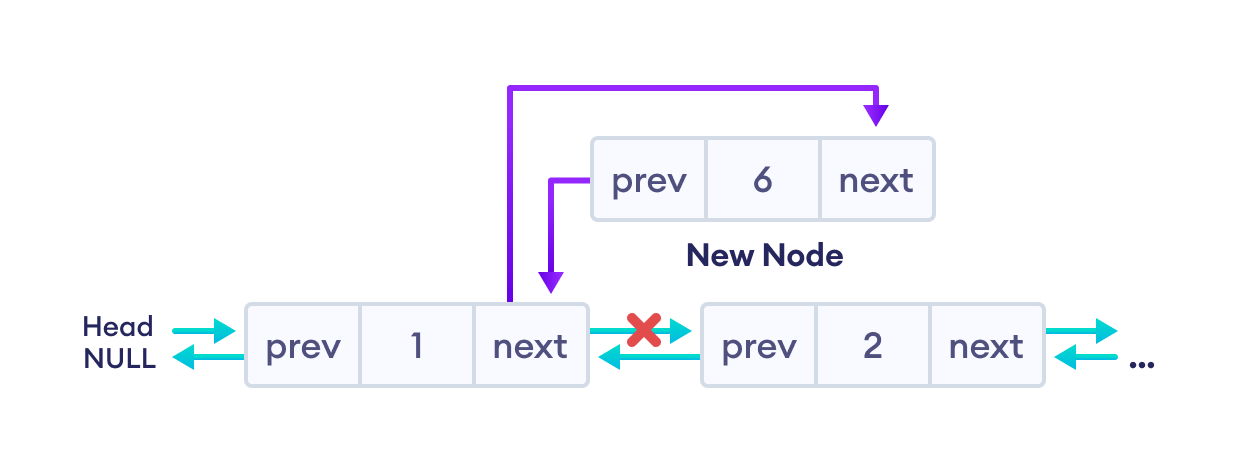

2. Set the next pointer of new node and previous node

assign the value of next from previous node to the next of newNode
assign the address of newNode to the next of previous node

3. Set the prev pointer of new node and the next node

assign the value of prev of next node to the prev of newNode
assign the address of newNode to the prev of next node

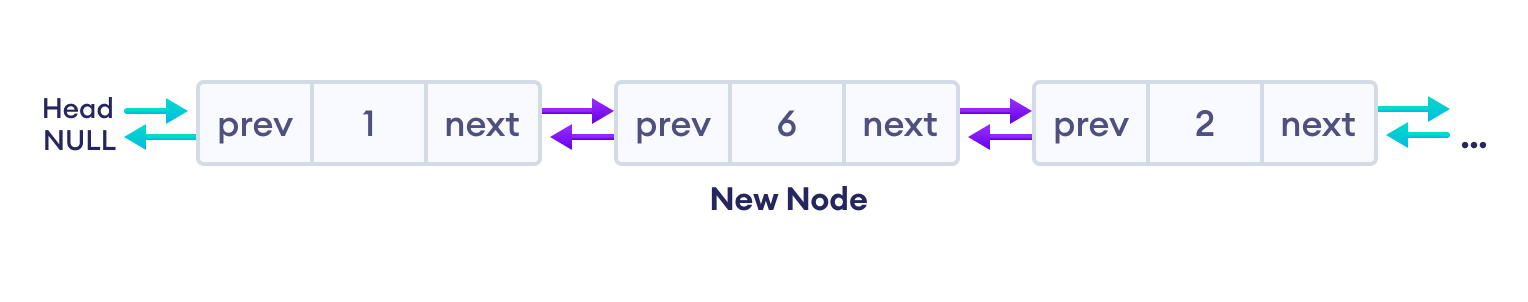

The final doubly linked list is after this insertion is:

Code for Insertion in between two Nodes

// insert a node after a specific node
void insertAfter(struct Node* prev_node, int data) {

    // check if previous node is NULL
    if (prev_node == NULL) {
        cout << "previous node cannot be NULL";
        return;
    }

    // allocate memory for newNode
    struct Node* newNode = new Node;

    // assign data to newNode
    newNode->data = data;

    // set next of newNode to next of prev node
    newNode->next = prev_node->next;

    // set next of prev node to newNode
    prev_node->next = newNode;

    // set prev of newNode to the previous node
    newNode->prev = prev_node;

    // set prev of newNode's next to newNode
    if (newNode->next != NULL)
        newNode->next->prev = newNode;
}

3. Insertion at the End

Let's add a node with value 6 at the end of the doubly linked list.

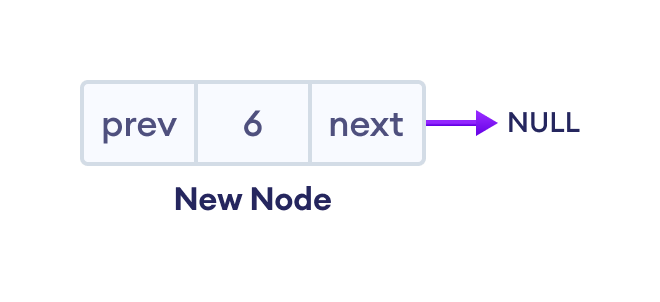

1. Create a new node

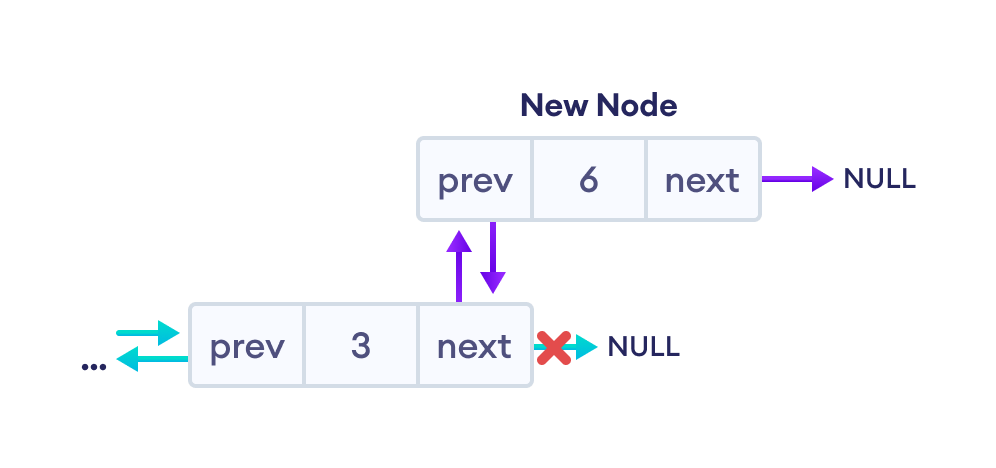

2. Set prev and next pointers of new node and the previous node

If the linked list is empty, make the newNode as the head node. Otherwise, traverse to the end of the doubly linked list and

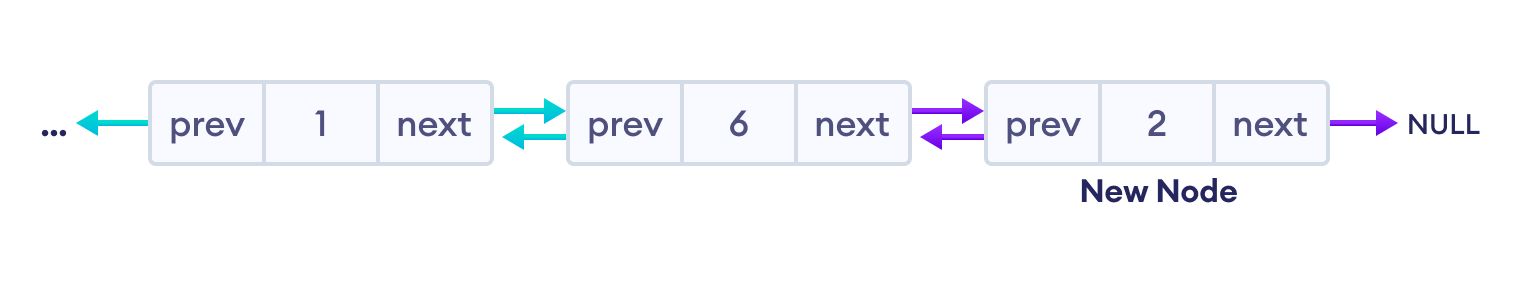

The final doubly linked list looks like this.

Code for Insertion at the End

// insert a newNode at the end of the list
void insertEnd(struct Node** head, int data) {
    // allocate memory for node
    struct Node* newNode = new Node;

    // assign data to newNode
    newNode->data = data;

    // assign NULL to next of newNode
    newNode->next = NULL;

    // store the head node temporarily (for later use)
    struct Node* temp = *head;

    // if the linked list is empty, make the newNode as head node
    if (*head == NULL) {
        newNode->prev = NULL;
        *head = newNode;
        return;
    }

    // if the linked list is not empty, traverse to the end of the linked list
    while (temp->next != NULL)
        temp = temp->next;

    // now, the last node of the linked list is temp

    // point the next of the last node (temp) to newNode.
    temp->next = newNode;

    // assign prev of newNode to temp
    newNode->prev = temp;
}

Deletion from a Doubly Linked List

Similar to insertion, we can also delete a node from 3 different positions of a doubly linked list.

Suppose we have a double-linked list with elements 1, 2, and 3.

1. Delete the First Node of Doubly Linked List

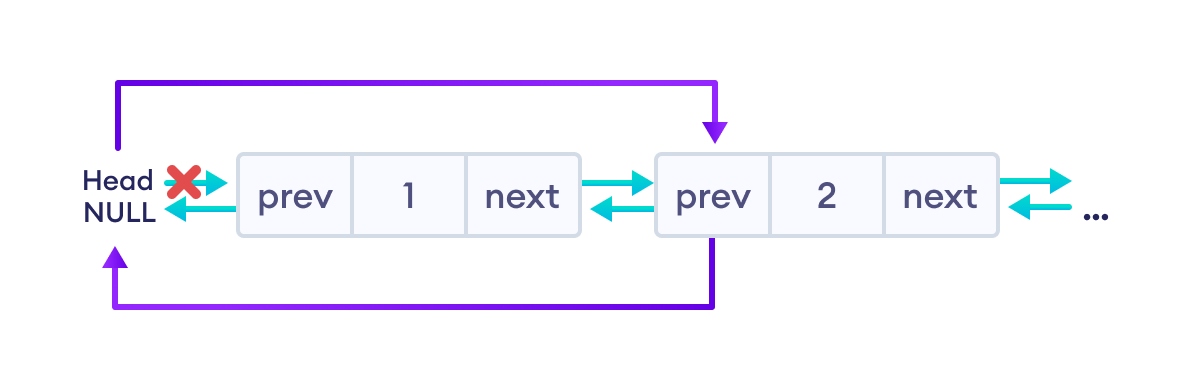

If the node to be deleted (i.e. del_node) is at the beginning

Reset value node after the del_node (i.e. node two)

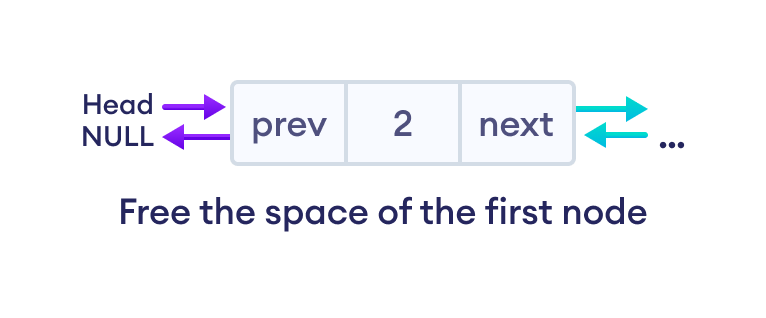

Finally, free the memory of del_node. And, the linked will look like this

Code for Deletion of the First Node

if (*head == del_node)
    *head = del_node->next;

if (del_node->prev != NULL)
    del_node->prev->next = del_node->next;

free(del);

2. Deletion of the Inner Node

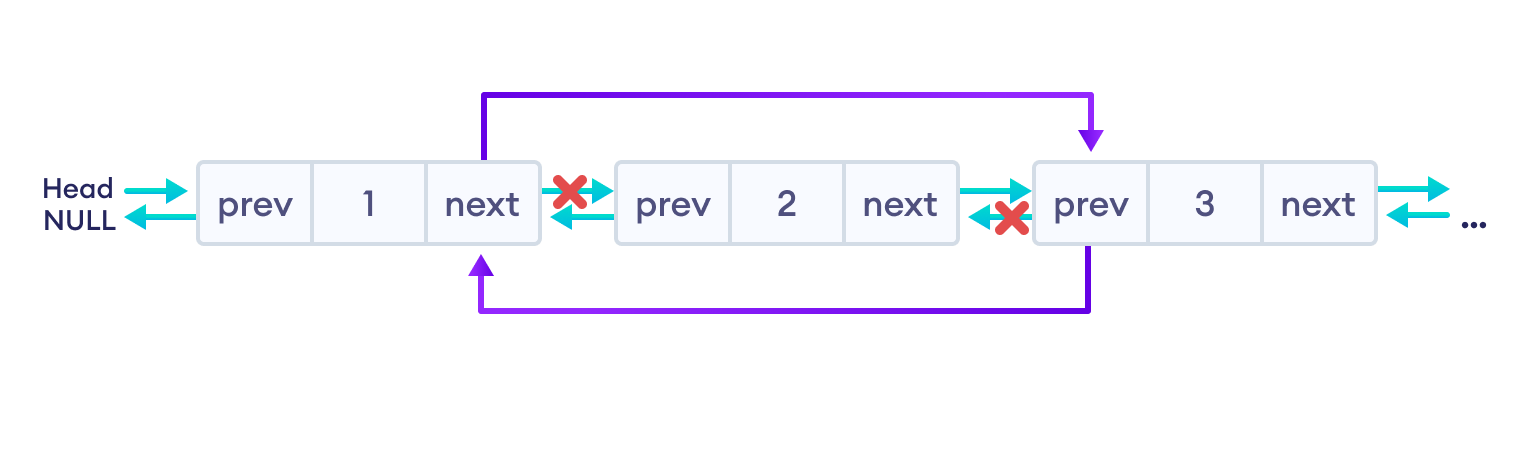

If del_node is an inner node (second node), we must have to reset the value of next and prev of the nodes before and after the del_node.

For the node before the del_node (i.e. first node)

Assign the value of next of del_node to the next of the first node.

For the node after the del_node (i.e. third node)

Assign the value of prev of del_node to the prev of the third node.

Finally, we will free the memory of del_node. And, the final doubly linked list looks like this.

Code for Deletion of the Inner Node

if (del_node->next != NULL)
    del_node->next->prev = del_node->prev;

if (del_node->prev != NULL)
    del_node->prev->next = del_node->next;

3. Delete the Last Node of Doubly Linked List

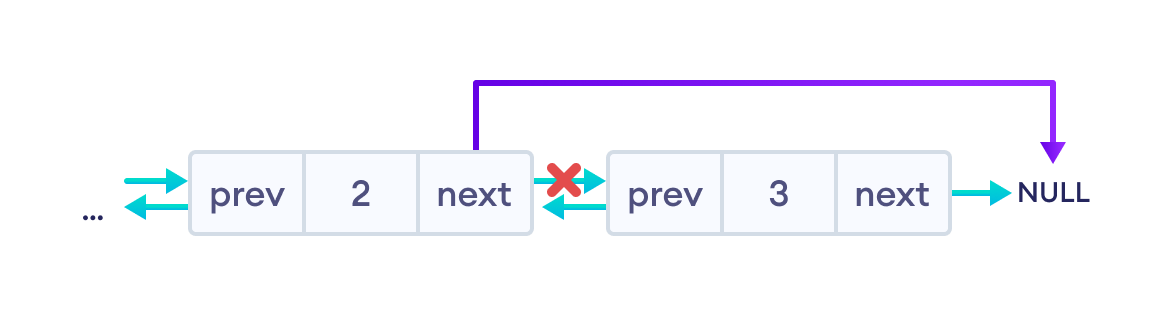

In this case, we are deleting the last node with value 3 of the doubly linked list.

Here, we can simply delete the del_node and make the next of node before del_node point to NULL.

The final doubly linked list looks like this.

Code for Deletion of the Last Node

if (del_node->prev != NULL)
    del_node->prev->next = del_node->next;

Here, del_node ->next is NULL so del_node->prev->next = NULL.

Note: We can also solve this using the first condition (for the node before del_node) of the second case (Delete the inner node).
