Circular Queue Data Structure

A circular queue is the extended version of a regular queue where the last element is connected to the first element. Thus forming a circle-like structure.

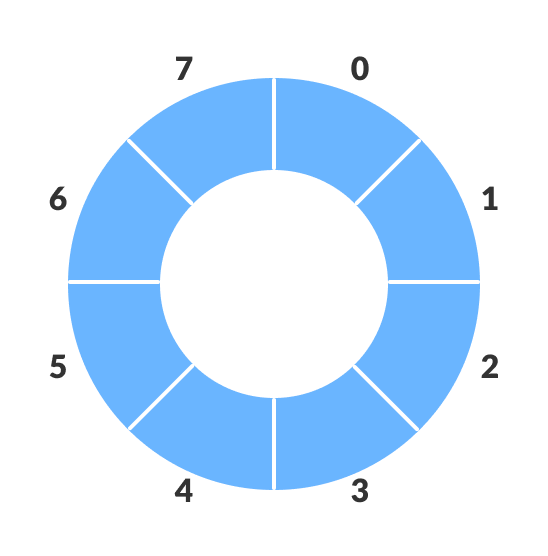

Circular increment in circular queue
Circular queue representation

The circular queue solves the major limitation of the normal queue. In a normal queue, after a bit of insertion and deletion, there will be non-usable empty space.

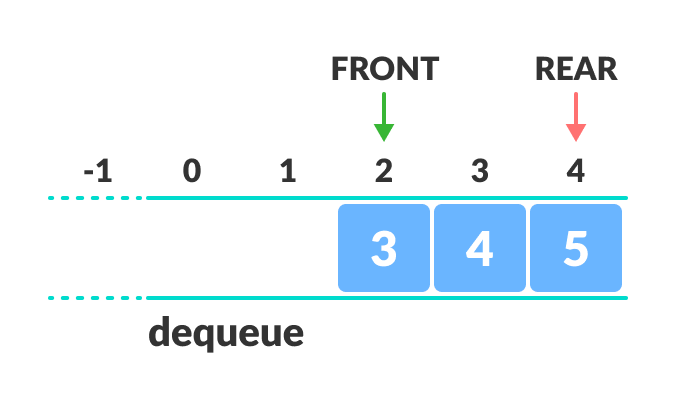

demonstrate how we cannot add element even after removing some element from the queue
Limitation of the regular Queue

Here, indexes 0 and 1 can only be used after resetting the queue (deletion of all elements). This reduces the actual size of the queue.


How Circular Queue Works

Circular Queue works by the process of circular increment i.e. when we try to increment the pointer and we reach the end of the queue, we start from the beginning of the queue.

Here, the circular increment is performed by modulo division with the queue size. That is,

if REAR + 1 == 5 (overflow!), REAR = (REAR + 1)%5 = 0 (start of queue)

Circular Queue Operations

The circular queue work as follows:

  • two pointers FRONT and REAR
  • FRONT track the first element of the queue
  • REAR track the last elements of the queue
  • initially, set value of FRONT and REAR to -1

1. Enqueue Operation

  • check if the queue is full
  • for the first element, set value of FRONT to 0
  • circularly increase the REAR index by 1 (i.e. if the rear reaches the end, next it would be at the start of the queue)
  • add the new element in the position pointed to by REAR

2. Dequeue Operation

  • check if the queue is empty
  • return the value pointed by FRONT
  • circularly increase the FRONT index by 1
  • for the last element, reset the values of FRONT and REAR to -1

However, the check for full queue has a new additional case:

  • Case 1: FRONT = 0 && REAR == SIZE - 1
  • Case 2: FRONT = REAR + 1

The second case happens when REAR starts from 0 due to circular increment and when its value is just 1 less than FRONT, the queue is full.

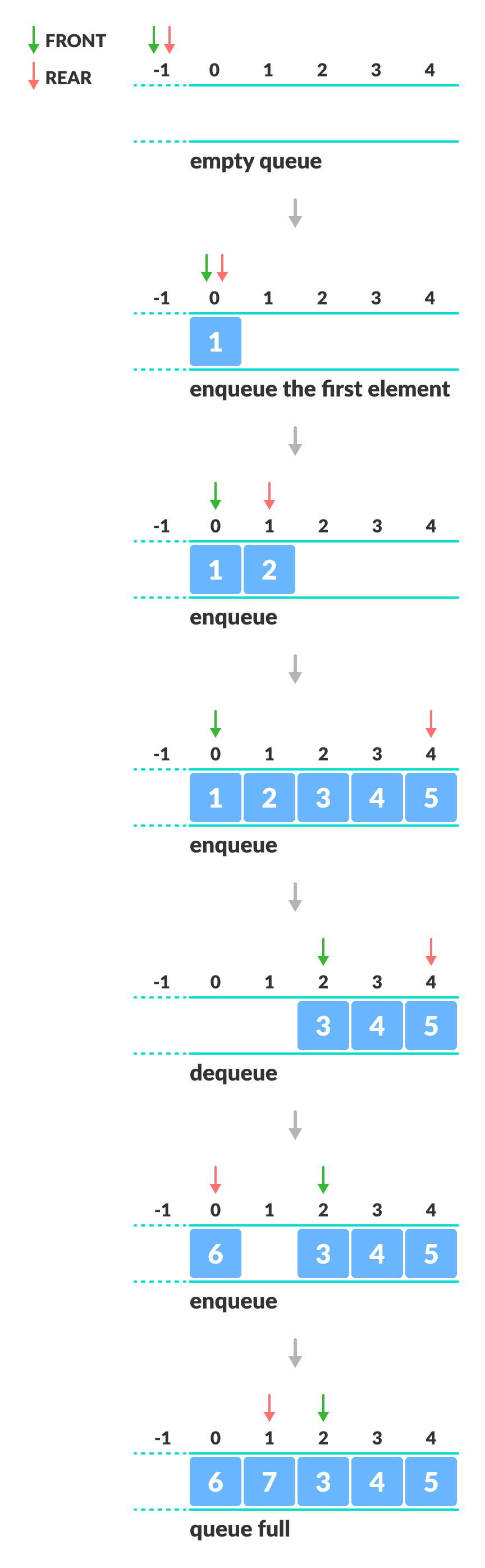

enqueue and dequeue operation of the circular queue
Enque and Deque Operations

Circular Queue Implementations in Python, Java, C, and C++

The most common queue implementation is using arrays, but it can also be implemented using lists.

# Circular Queue implementation in Python


class MyCircularQueue():

    def __init__(self, k):
        self.k = k
        self.queue = [None] * k
        self.head = self.tail = -1

    # Insert an element into the circular queue
    def enqueue(self, data):

        if ((self.tail + 1) % self.k == self.head):
            print("The circular queue is full\n")

        elif (self.head == -1):
            self.head = 0
            self.tail = 0
            self.queue[self.tail] = data
        else:
            self.tail = (self.tail + 1) % self.k
            self.queue[self.tail] = data

    # Delete an element from the circular queue
    def dequeue(self):
        if (self.head == -1):
            print("The circular queue is empty\n")

        elif (self.head == self.tail):
            temp = self.queue[self.head]
            self.head = -1
            self.tail = -1
            return temp
        else:
            temp = self.queue[self.head]
            self.head = (self.head + 1) % self.k
            return temp

    def printCQueue(self):
        if(self.head == -1):
            print("No element in the circular queue")

        elif (self.tail >= self.head):
            for i in range(self.head, self.tail + 1):
                print(self.queue[i], end=" ")
            print()
        else:
            for i in range(self.head, self.k):
                print(self.queue[i], end=" ")
            for i in range(0, self.tail + 1):
                print(self.queue[i], end=" ")
            print()


# Your MyCircularQueue object will be instantiated and called as such:
obj = MyCircularQueue(5)
obj.enqueue(1)
obj.enqueue(2)
obj.enqueue(3)
obj.enqueue(4)
obj.enqueue(5)
print("Initial queue")
obj.printCQueue()

obj.dequeue()
print("After removing an element from the queue")
obj.printCQueue()
// Circular Queue implementation in Java

public class CQueue {
  int SIZE = 5; // Size of Circular Queue
  int front, rear;
  int items[] = new int[SIZE];

  CQueue() {
    front = -1;
    rear = -1;
  }

  // Check if the queue is full
  boolean isFull() {
    if (front == 0 && rear == SIZE - 1) {
      return true;
    }
    if (front == rear + 1) {
      return true;
    }
    return false;
  }

  // Check if the queue is empty
  boolean isEmpty() {
    if (front == -1)
      return true;
    else
      return false;
  }

  // Adding an element
  void enQueue(int element) {
    if (isFull()) {
      System.out.println("Queue is full");
    } else {
      if (front == -1)
        front = 0;
      rear = (rear + 1) % SIZE;
      items[rear] = element;
      System.out.println("Inserted " + element);
    }
  }

  // Removing an element
  int deQueue() {
    int element;
    if (isEmpty()) {
      System.out.println("Queue is empty");
      return (-1);
    } else {
      element = items[front];
      if (front == rear) {
        front = -1;
        rear = -1;
      } /* Q has only one element, so we reset the queue after deleting it. */
      else {
        front = (front + 1) % SIZE;
      }
      return (element);
    }
  }

  void display() {
    /* Function to display status of Circular Queue */
    int i;
    if (isEmpty()) {
      System.out.println("Empty Queue");
    } else {
      System.out.println("Front -> " + front);
      System.out.println("Items -> ");
      for (i = front; i != rear; i = (i + 1) % SIZE)
        System.out.print(items[i] + " ");
      System.out.println(items[i]);
      System.out.println("Rear -> " + rear);
    }
  }

  public static void main(String[] args) {

    CQueue q = new CQueue();

    // Fails because front = -1
    q.deQueue();

    q.enQueue(1);
    q.enQueue(2);
    q.enQueue(3);
    q.enQueue(4);
    q.enQueue(5);

    // Fails to enqueue because front == 0 && rear == SIZE - 1
    q.enQueue(6);

    q.display();

    int elem = q.deQueue();

    if (elem != -1) {
      System.out.println("Deleted Element is " + elem);
    }
    q.display();

    q.enQueue(7);

    q.display();

    // Fails to enqueue because front == rear + 1
    q.enQueue(8);
  }

}
// Circular Queue implementation in C

#include <stdio.h>

#define SIZE 5

int items[SIZE];
int front = -1, rear = -1;

// check if the queue is full
int isFull() {
  if ((front == (rear + 1) % SIZE) || (front == 0 && rear == SIZE - 1)) return 1;
  return 0;
}

// check if the queue is empty
int isEmpty() {
  if (front == -1) return 1;
  return 0;
}

// adding an element
void enQueue(int element) {
  if (isFull())
    printf("\n Queue is full!! \n");
  else {
    if (front == -1) front = 0;
    rear = (rear + 1) % SIZE;
    items[rear] = element;
    printf("\n Inserted -> %d", element);
  }
}

// removing an element
int deQueue() {
  int element;
  if (isEmpty()) {
    printf("\n Queue is empty !! \n");
    return (-1);
  } else {
    element = items[front];
    if (front == rear) {
      front = -1;
      rear = -1;
    }
    // Q has only one element, so we reset the
    // queue after dequeing it. ?
    else {
      front = (front + 1) % SIZE;
    }
    printf("\n Deleted element -> %d \n", element);
    return (element);
  }
}

// display the queue
void display() {
  int i;
  if (isEmpty())
    printf(" \n Empty Queue\n");
  else {
    printf("\n Front -> %d ", front);
    printf("\n Items -> ");
    for (i = front; i != rear; i = (i + 1) % SIZE) {
      printf("%d ", items[i]);
    }
    printf("%d ", items[i]);
    printf("\n Rear -> %d \n", rear);
  }
}

int main() {
  // fails because front = -1
  deQueue();

  enQueue(1);
  enQueue(2);
  enQueue(3);
  enQueue(4);
  enQueue(5);

  // fails to enqueue because front == 0 && rear == SIZE - 1
  enQueue(6);

  display();
  deQueue();

  display();

  enQueue(7);
  display();

  // fails to enqueue because front == rear + 1
  enQueue(8);

  return 0;
}
// Circular Queue implementation in C++

#include <iostream>
#define SIZE 5 /* Size of Circular Queue */

using namespace std;

class Queue {
   private:
  int items[SIZE], front, rear;

   public:
  Queue() {
    front = -1;
    rear = -1;
  }
  // Check if the queue is full
  bool isFull() {
    if (front == 0 && rear == SIZE - 1) {
      return true;
    }
    if (front == (rear + 1) % SIZE) {
      return true;
    }
    return false;
  }

  // Check if the queue is empty
  bool isEmpty() {
    if (front == -1)
      return true;
    else
      return false;
  }
  // Adding an element
  void enQueue(int element) {
    if (isFull()) {
      cout << "Queue is full" << endl;
    } else {
      if (front == -1) front = 0;
      rear = (rear + 1) % SIZE;
      items[rear] = element;
      cout << endl
         << "Inserted " << element << endl;
    }
  }
  // Removing an element
  int deQueue() {
    int element;
    if (isEmpty()) {
      cout << "Queue is empty" << endl;
      return (-1);
    } else {
      element = items[front];
      if (front == rear) {
        front = -1;
        rear = -1;
      }
      // Q has only one element,
      // so we reset the queue after deleting it.
      else {
        front = (front + 1) % SIZE;
      }
      return (element);
    }
  }

  void display() {
    // Function to display status of Circular Queue
    int i;
    if (isEmpty()) {
      cout << endl
         << "Empty Queue" << endl;
    } else {
      cout << "Front -> " << front;
      cout << endl
         << "Items -> ";
      for (i = front; i != rear; i = (i + 1) % SIZE)
        cout << items[i] << "\t";
      cout << items[i];
      cout << endl
         << "Rear -> " << rear << endl;
    }
  }
};

int main() {
  Queue q;

  // Fails because front = -1
  q.deQueue();

  q.enQueue(1);
  q.enQueue(2);
  q.enQueue(3);
  q.enQueue(4);
  q.enQueue(5);

  // Fails to enqueue because front == 0 && rear == SIZE - 1
  q.enQueue(6);

  q.display();

  int elem = q.deQueue();

  if (elem != -1)
    cout << endl
       << "Deleted Element is " << elem << endl;

  q.display();

  q.enQueue(7);

  q.display();

  // Fails to enqueue because front == rear + 1
  q.enQueue(8);

  return 0;
}

Circular Queue Complexity Analysis

The complexity of the enqueue and dequeue operations of a circular queue is O(1) for (array implementations).


Applications of Circular Queue

  • CPU scheduling
  • Memory management
  • Traffic Management
