C++ Deque

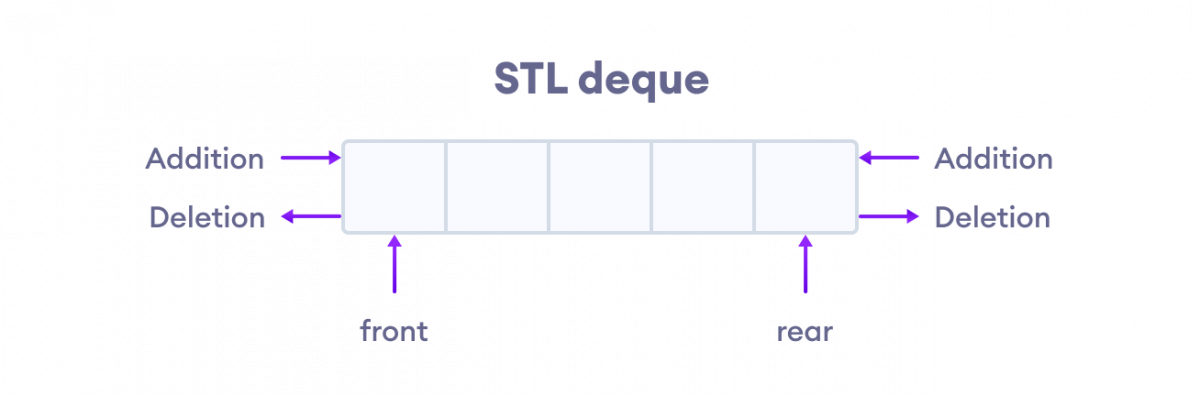

In C++, the STL deque is a sequential container that provides the functionality of a double-ended queue data structure.

In a regular queue, elements are added from the rear and removed from the front. However, in a deque, we can insert and remove elements from both the front and rear.

To learn more about deques, visit Deque Data Structure.

Create C++ STL Deque

In order to create a deque in C++, we first need to include the deque header file.

#include <deque>

Once we import this file, we can create a deque using the following syntax:

deque<type> dq;

Here, type indicates the data type we want to store in the deque. For example,

// create a deque of integer data type
deque<int> dq_integer;

// create a deque of string data type
deque<string> dq_string;

Initialize a Deque

We can initialize a C++ deque in the following ways:

// method 1: initializer list
deque<int> deque1 = {1, 2, 3, 4, 5};

// method 2: uniform initialization
deque<int> deque2 {1, 2, 3, 4, 5};

Here, both deque1 and deque2 are initialized with values 1, 2, 3, 4, 5.

Example: C++ Deque

#include <iostream>
#include <deque>
using namespace std;

// function prototype
void display_deque(deque<int>);

int main() {

  // uniform initialization
  deque<int> deque1 {1, 2, 3, 4, 5};

  cout << "deque1 = ";

  // display elements of deque1
  for (int num : deque1) {
    cout << num << ", ";
  }

  return 0;
}

Output

deque1 = 1, 2, 3, 4, 5,

In the above example, we have declared and initialized a deque named deque1 using uniform initialization.

deque<int> deque1 {1, 2, 3, 4, 5};

Then, we have displayed the deque contents using a ranged for loop.

for (int num : deque1) {
  cout << num << ", ";
}

// fill constructor
deque<int> deque1(5, 12);

deque<int> deque1 = {12, 12, 12, 12, 12};

deque<int> deque1 = {1, 2, 3, 4, 5};

// copy all elemnts of deque1 to deque2
deque<int> deque2(deque1.begin(), deque1.end());

// copy elements from index 1 to index 2 of deque1
deque<int> deque3(deque1.begin() + 1, deque1.begin() + 3);

C++ Deque Methods

In C++, the deque class provides various methods to perform different operations on a deque.

Insert Elements to a Deque

We can use the following methods to insert elements:

• push_back() - insert elements at the end
• push_front() - insert elements at the beginning

For example,

#include <iostream>
#include <deque>
using namespace std;

int main() {

  deque<int> nums {2, 3};

  cout << "Initial Deque: ";
  for (const int& num : nums) {
    cout << num << ", ";
  }

  // add integer 4 at the back
  nums.push_back(4);

  // add integer 1 at the front
  nums.push_front(1);

  cout << "\nFinal Deque: ";
  for (const int& num : nums) {
    cout << num << ", ";
  }

  return 0;
}

Output

Initial Deque: 2, 3,
Final Deque: 1, 2, 3, 4,

In the above example, we have initialized a deque of integers named nums with the elements 2 and 3.

Then, we inserted the integer 4 to the back of the nums.

// nums = {2, 3, 4}
nums.push_back(4);

Finally, we inserted 1 at the front of the deque.

// nums = {1, 2, 3, 4}
nums.push_front(1);

Note: We can also use the insert() and emplace() methods to add elements to the deque.

Access Elements from a Deque

We can use the following methods to access elements of the deque:

• front() - returns element at the front
• back() - returns element at the back
• at() - returns element at the specified index

For example,

#include <iostream>
#include <deque>
using namespace std;

int main() {

  deque<int> nums {1, 2, 3};

  cout << "Front element: " << nums.front() << endl;
  cout << "Back element: " << nums.back() << endl;
  cout << "Element at index 1: " << nums.at(1) << endl;
  cout << "Element at index 0: " << nums[0];

  return 0;
}

Output

Front element: 1
Back element: 3
Element at index 1: 2
Element at index 0: 1

In the above example,

• nums.front() - returns the element at the front of the deque i.e. 1
• nums.back() - returns the element at the back of the deque i.e. 3
• nums.at(1) - returns the element at index 1 i.e. 2
• nums[0] - returns the element at index 0 i.e. 1

Change Elements of a Deque

We can use the at() method to change the element of the deque. For example,

#include <iostream>
#include <deque>
using namespace std;

int main() {

  deque<int> nums = {1, 2};

  cout << "Initial Deque: ";

  for (const int& num : nums) {
    cout << num << ", ";
  }

  // change elements at the index
  nums.at(0) = 3;
  nums.at(1) = 4;

  cout << "\nUpdated Deque: ";

  for (const int& num : nums) {
    cout << num << ", ";
  }

  return 0;
}

Output

Initial Deque: 1, 2,
Updated Deque: 3, 4,

In the above example, the initial contents of the nums deque are {1, 2}.

Then, we have used the at() method to change the elements at the specified indexes:

• nums.at(0) = 2; - changes the value at index 0 changes to 3
• nums.at(1) = 4; - changes the value at index 1 to 4

Remove Elements from a Deque

We can remove the elements of a deque using the following methods:

• pop_back() - removes the element from the back
• pop_front() - removes the element from the front

For example,

#include <iostream>
#include <deque>
using namespace std;

// function prototype for display_deque()
void display_deque(deque<int>);

int main() {

  deque<int> nums {1, 2, 3};

  cout << "Initial Deque: ";
  display_deque(nums);

  // remove element from the back
  nums.pop_back();

  cout << "\nDeque after pop_back(): ";
  display_deque(nums);

  // remove element from the front
  nums.pop_front();

  cout << "\nDeque after pop_front(): ";
  display_deque(nums);

  return 0;
}

// utility function to print deque elements
void display_deque(deque<int> dq){
  for (const int& num : dq) {
    cout << num << ", ";
  }
}

Output

Initial Deque: 1,  2,  3,
Deque after pop_back(): 1, 2,
Deque after pop_front(): 2,

In the above example, we have initialized an integer deque named nums with the elements {1, 2, 3}.

Then, we used pop_back() and pop_front() to remove elements from nums.

nums.pop_back(); // removes 3
names.pop_front(); // removes 1

So the final deque becomes {2}.

C++ Deque Iterators

Iterators can be used to point to the memory address of a deque element.

We can create a deque iterator using the following syntax:

deque<type>::iterator itertaor_name;

For example,

// iterator for int deque
deque<int>::iterator iter_int;

// iterator for double deque
deque<double>::iterator iter_double;

Access Elements Using Deque Iterators

We can access the elements in deque using iterators. For example,

#include <iostream>
#include <deque>
using namespace std;

int main() {

  deque<int> nums {1, 2, 3};

  // declare an iterator to deque
 deque<int>::iterator dq_iter;

  // make iterator point to first element
  dq_iter = nums.begin();

  // print value pointed by itertor using *
  int first_element = *dq_iter;

  cout << "nums[0] = " << first_element << endl;

  // make iterator point to element at index 1
  dq_iter = nums.begin() + 1;
  int element_index1 = *dq_iter;

  cout << "nums[1] = " << element_index1 << endl;

  // make iterator point to last element
  dq_iter = nums.end() - 1;
  int last_element = *dq_iter;

  cout << "nums[2] = " << last_element;

  return 0;
}

Output

nums[0] = 1
nums[1] = 2
nums[2] = 3

In the above example, we have used iterators to access elements in the deque. Initially, we created an iterator that can point to a deque of integers:

deque<int>::iterator dq_iter;

Then, we have used the dq_iter iterator to point to the following elements:

1. The First Element

dq_iter = nums.begin();

Here, the begin() method returns an iterator that points to the first element.

2. Element at Index 1

dq_iter = nums.begin() + 1;

The code begin() + 1 returns an iterator that points to the element at index 1.

Note: To generalize, nums.begin() + i points to the element at index i.

3. The Last Element

dq_iter = nums.end() - 1;

Notice that we are using nums.end() - 1 instead of nums.end().

This is because the end() method iterator points to the iterator past the last element. So, in order to get the final element, we are subtracting 1.

4. Get the Element Value

After using dq_iter to point to a certain element, we use the indirection operator * to get the value of that element:

// point to the first element
dq_iter = nums.begin();

// returns 1
int first_element = *dq_iter;

Here, *dq_iter gives the value of the element pointed to by the dq_iter iterator.

deque<int> nums {1, 2, 3, 4, 5};

// removes element at index 1
// nums becomes {1, 3, 4, 5}
nums.erase(nums.begin() + 1);

nums.erase(nums.begin() + index);

#include <iostream>
#include <deque>
using namespace std;

int main() {

  deque<int> nums {1, 2, 3, 4, 5};

  // removes elements from index 1 to 2
  nums.erase(nums.begin() + 1, nums.begin() + 3);

  for(auto num: nums) {
    cout << num << ", ";
  }

  return 0;
}

1, 4, 5,

nums.erase(nums.begin() + 1, nums.begin() + 3);

deque<int> nums {1, 2, 3};

// clear all the elements
nums.clear();

deque<int> nums {1, 2};

// returns 2
cout << nums.size();

// returns false
cout << nums.empty();

auto dq_iter = nums.begin();

deque<int>::iterator dq_iter = nums.begin();

auto dq_iter;  // invalid
